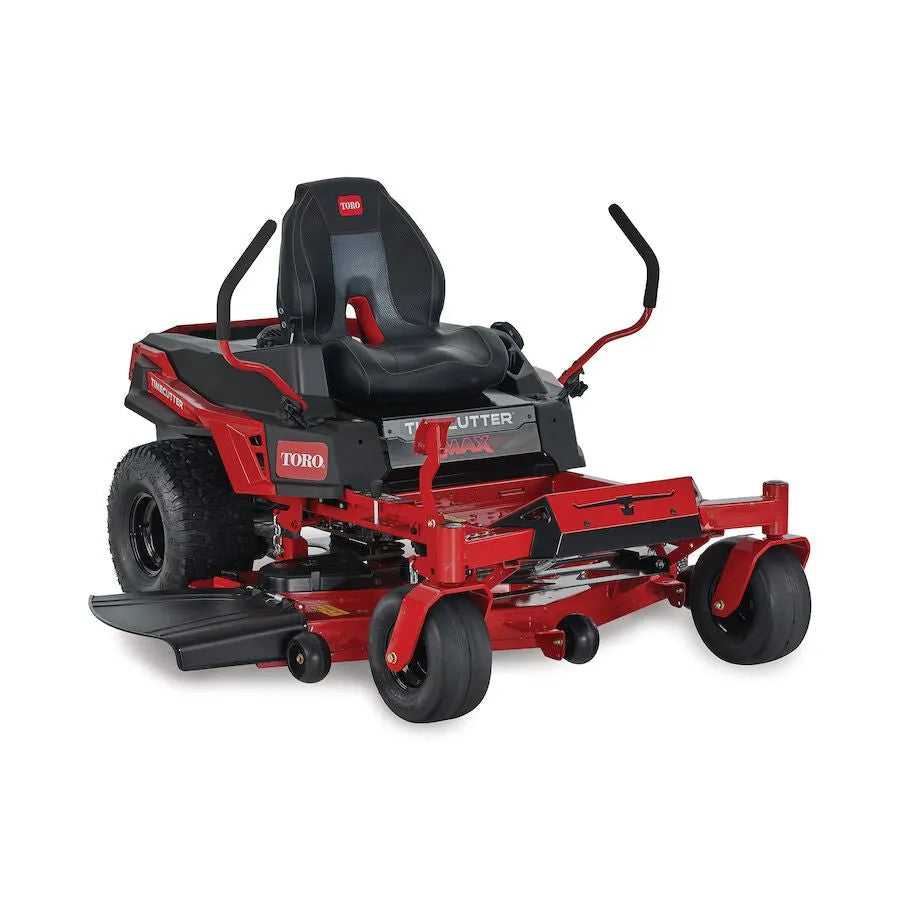

Toro Timecutter MAX 23hp Kawasaki Engine 54″ FAB Deck Z-Turn Mower #77504
- Over 100 years of Pro DNA course through the veins of every mower we build.
- Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
- The gaming-style seat gives you big time support exactly where you need it.
- The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
- Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
- Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
- Spray blocking fenders keep tire spray off your engine, and more importantly, you.
- Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
- The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
- Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
- The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
- The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Bagger Capacity | 4.9 bushels |
| Blade Tip Speed | 17,700 ft/min / 5,395 m/min |
| Box Dimensions | 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm |
| CARB Compliant | Not CARB Compliant |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | Standard Suspension |
| Cooling System | Air Cooled |
| Crankshaft | 1″ (25 mm) w/Steel Protector |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 54 in / 137 cm |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Engine Power (kW) | 17.2 kW |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Fuel Type | Gasoline |
| Greasable Bearings | Yes |
| Height of Cut | 1.0 – 5.0 in. / 2.5 – 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Roll-Over Protection System (ROPS) | Optional |
| Seat | 19″ Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Start Type | Electric |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 653 lbs / 296.2 kg |
Disclaimer
†See retailer for warranty details.
‡Specifications subject to change without notice and without incurring obligation. Products depicted are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments and safety features.
