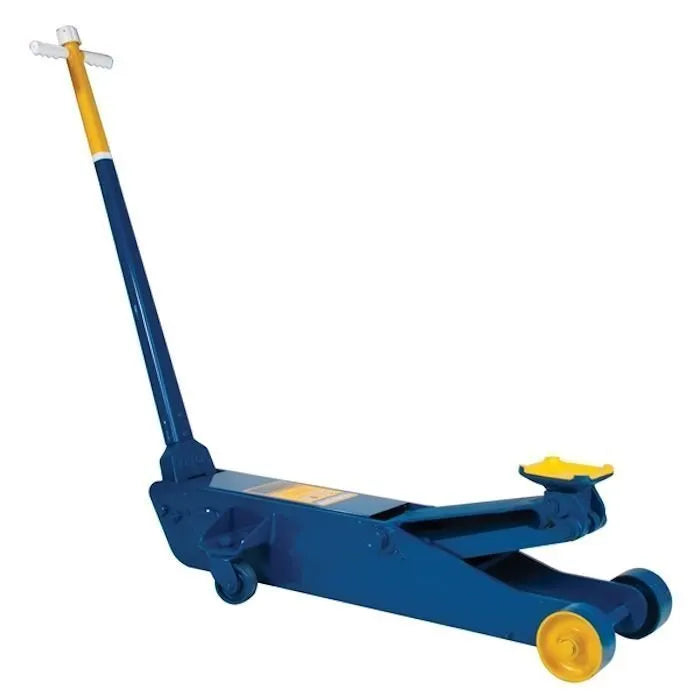

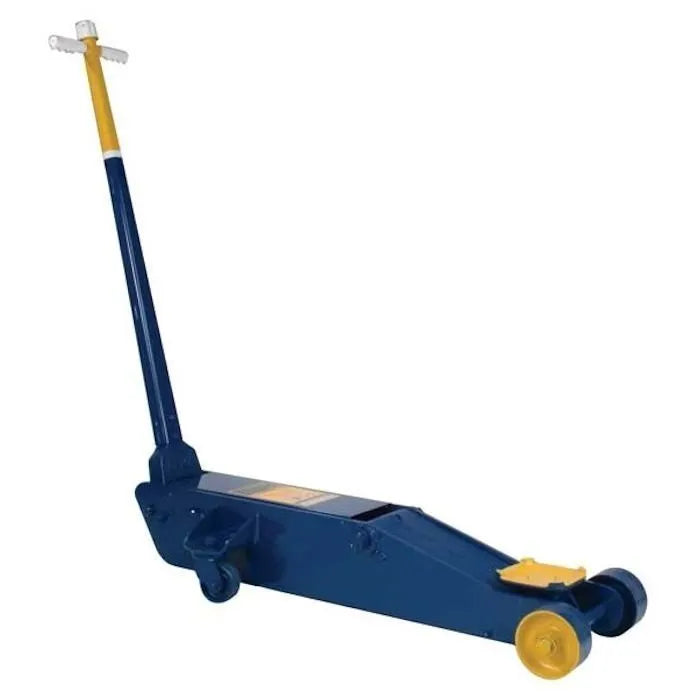

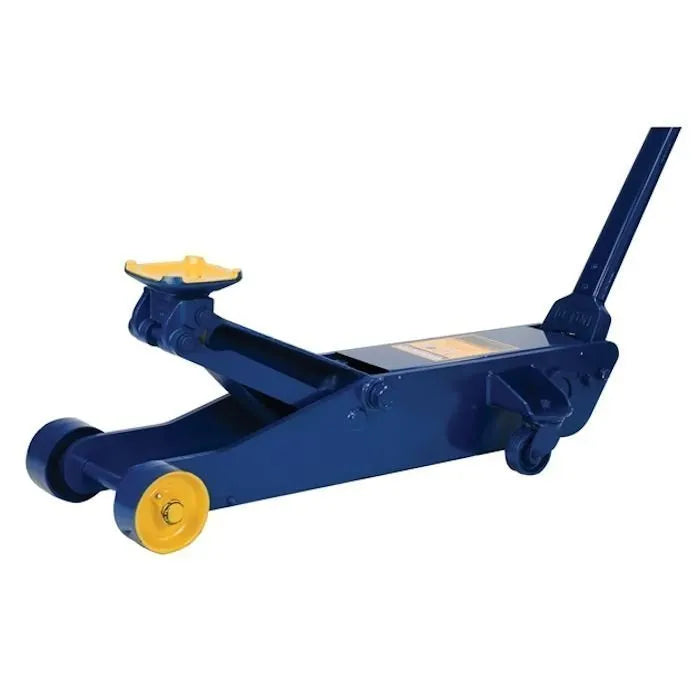

Hein-Werner 10-Ton Long Chassis Service Jack
The Hein-Werner 10-Ton Long Chassis Service Jack is ideal for lifting trucks, trailers and buses by the axle, differential or frame. Handle adjusts to three pumping positions and the long chassis provides accessiblity to hard to reach points. Dual piston action provides speed to contact and power to lift. Long chassis makes it easy to access the hard to reach points. The handle adjusts to three pumping positions and the T-handle with release knob allows for exact positioning of load. Sealed hydraulic unit keeps out dirt, grime, grit and moisture for longevity. Features cast lift arm for heavy loads. This premium quality floor jack is Made In USA.

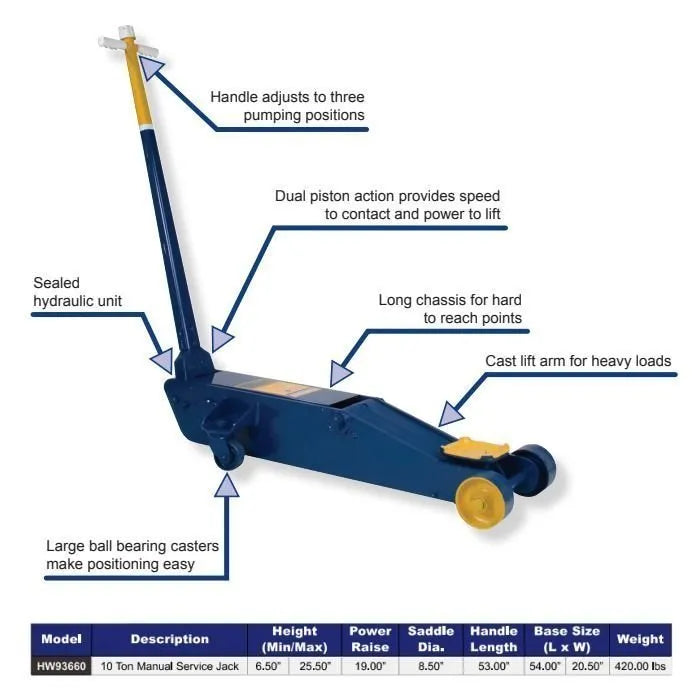

Features
- Lifting Trucks, Trailers, And Buses By The Axle, Differential, Or Frame
- Dual Piston Action Provides Speed To Contact And Power To Lift
- Forged Steel Hydraulic Unit Base Is Sealed For Long Life And Reliability
- Long Chassis For Hard To Reach Points
- Handle Adjusts To Three Pumping Positions
- T-Handle With Release Knob For Exact Positioning Of Load
- Sealed Hydraulic Unit Keeps Out Grit, Grime And Moisture
- Large Full Swivel Saddle And Ball Bearing Caster Make Positioning Easy
- Cast Lift Arm For Heavy Loads
- Made In USA
Specifications
- Capacity: 10-Tons
- Min Height: 6-1/2″
- Max Height: 25-1/2″
- Power Raise: 19″
- Saddle Diameter: 8-1/2″
- Handle Length: 53″
- Base Size: 54″ L x 20-1/2″ W
- Weight: 420 lbs.
- Warranty: (2) Years Limited
Most orders ship within 1-3 business days.
All major cards accepted, protected checkout.
New and factory-reconditioned items are covered. See product details for warranty length.
Orders are processed within 1-3 business days. Large equipment ships via freight with delivery scheduled by appointment. See our Shipping Policy for details.
Most items can be returned within 30 days of delivery for a full refund, less original shipping costs. See our Refund Policy for full details.
Factory-reconditioned items are inspected and serviced by the manufacturer to meet original performance specifications, and are covered by warranty. Check this product's title and description to confirm its condition.
Yes. Manufacturer warranty terms apply as noted on this product page. Contact us if you need help with a warranty claim.
Have a question about fit, specs, or which model is right for you? Contact us and we'll help you decide.
