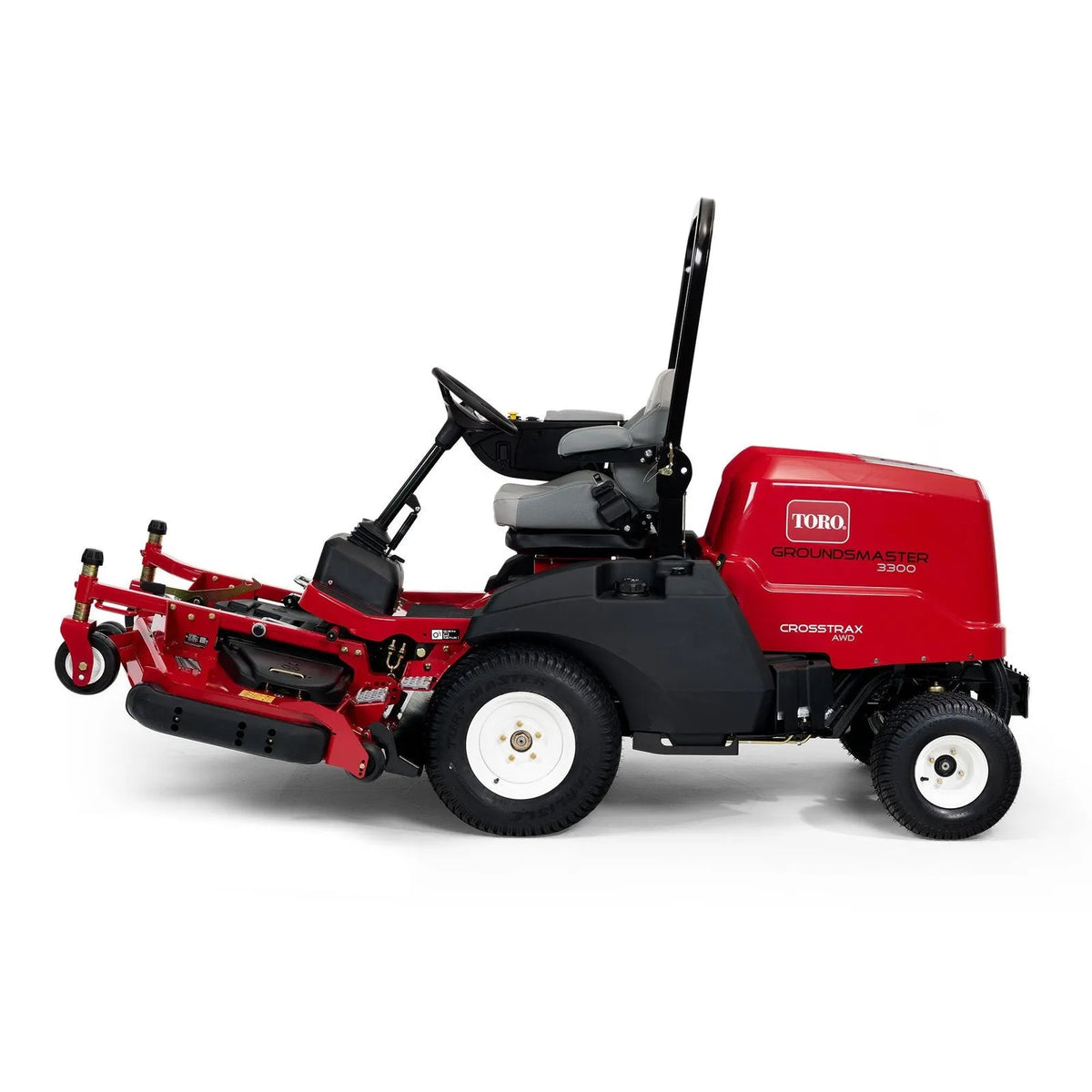

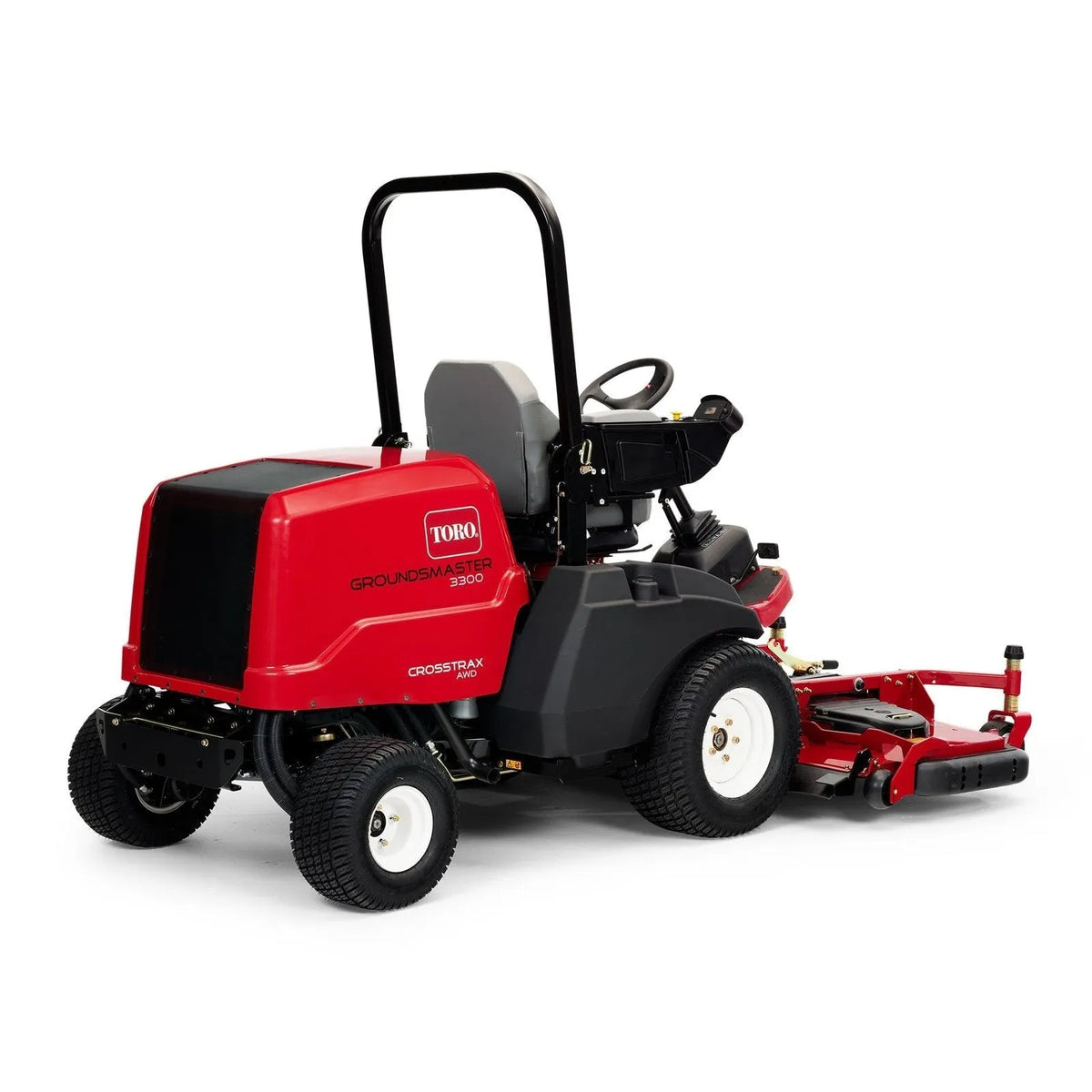

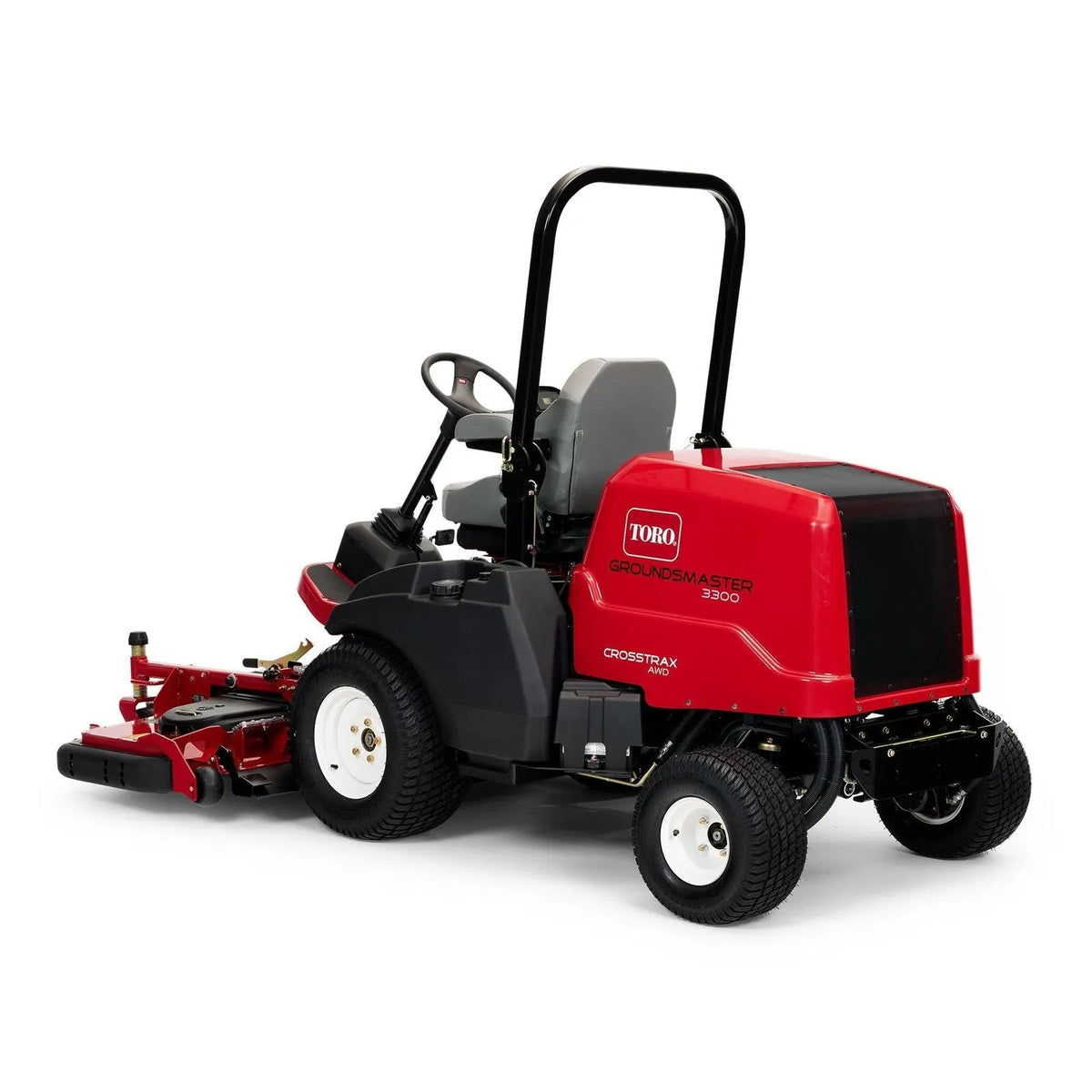

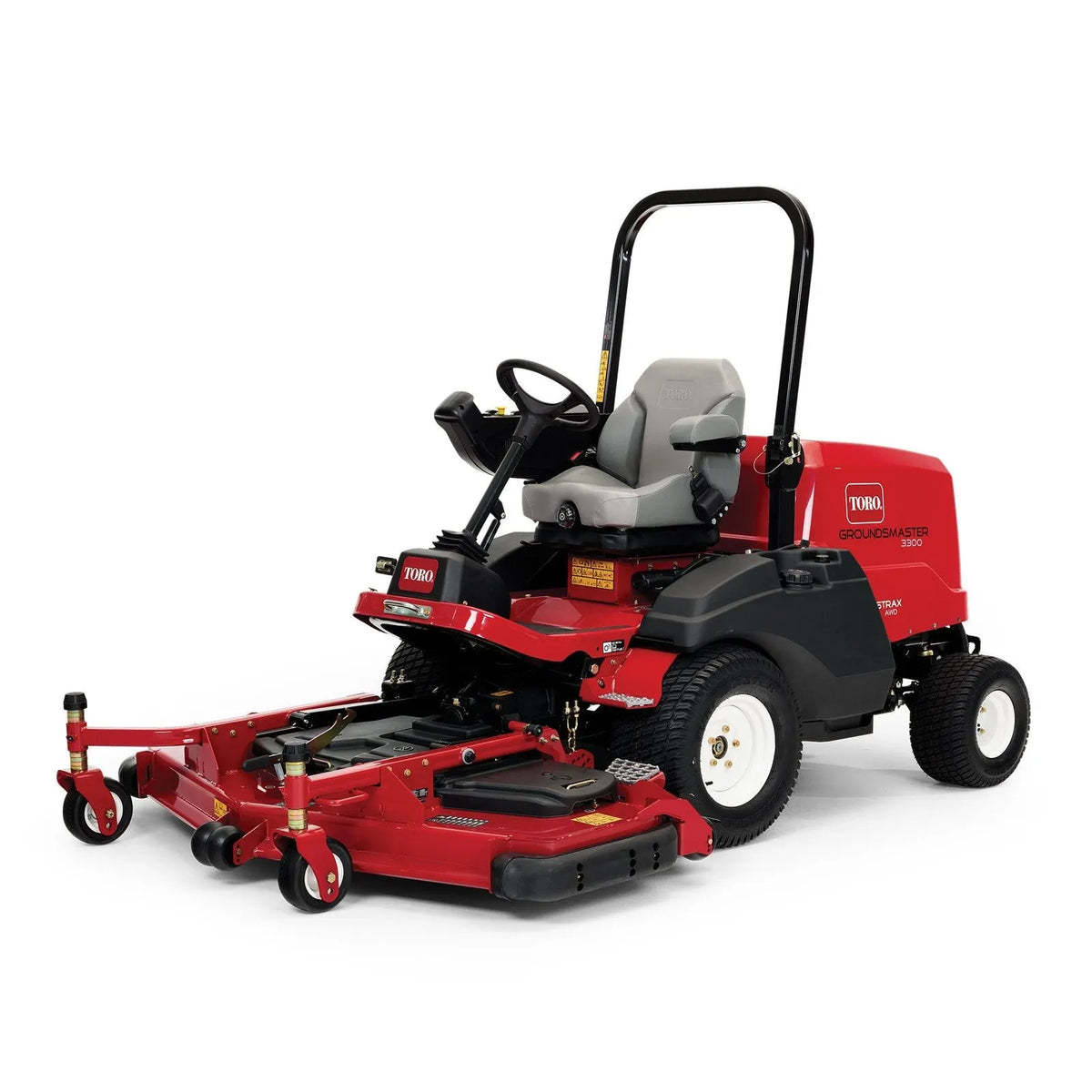

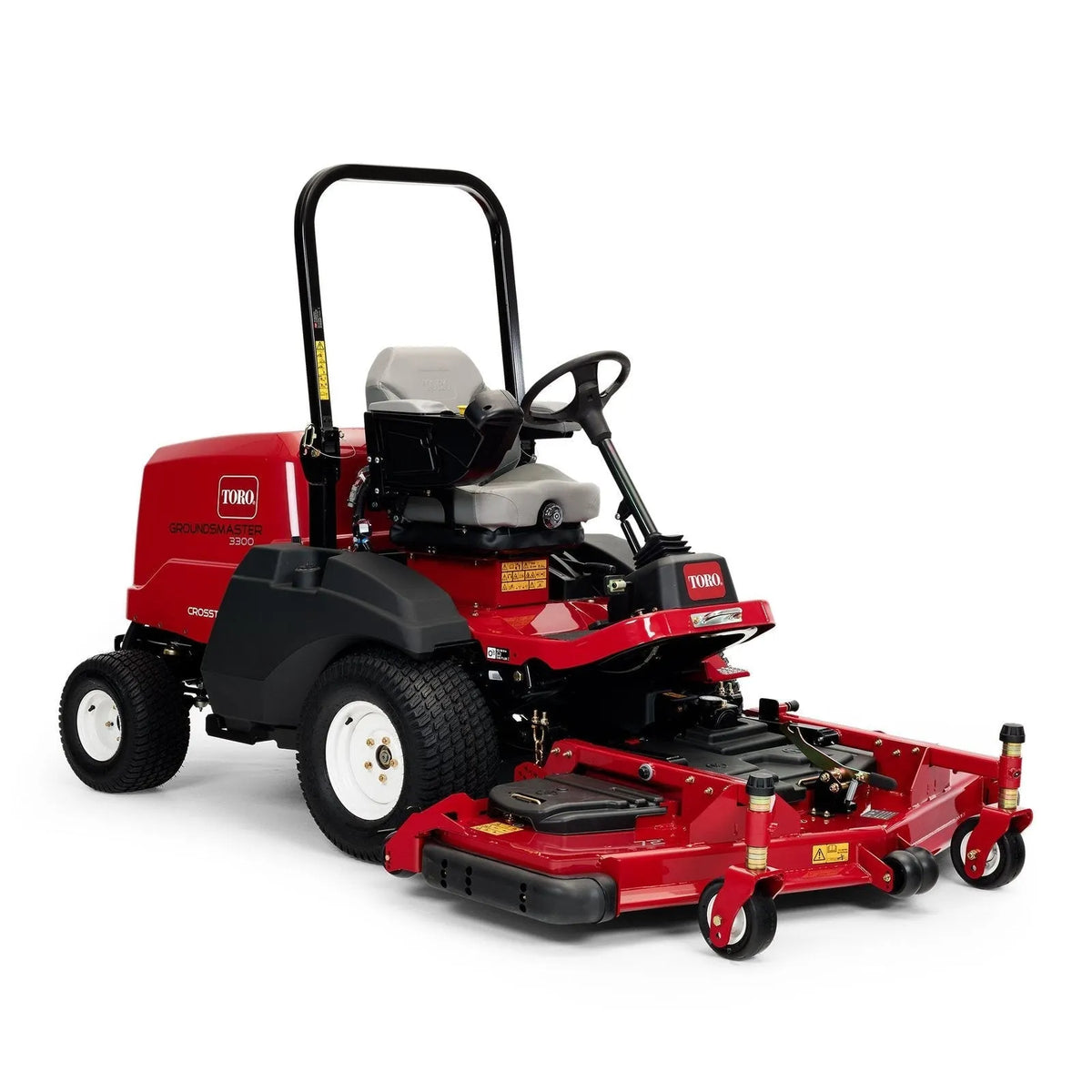

Groundsmaster® 3300
The Groundsmaster® 3300 delivers unparalleled productivity. Featuring a powerful 36.8 hp (27.5kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3300 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls and optional cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3300 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3300.
Armrests: Standard
Battery: 12V
Blade Style/Type: Rotary
Cab Unit: N/A

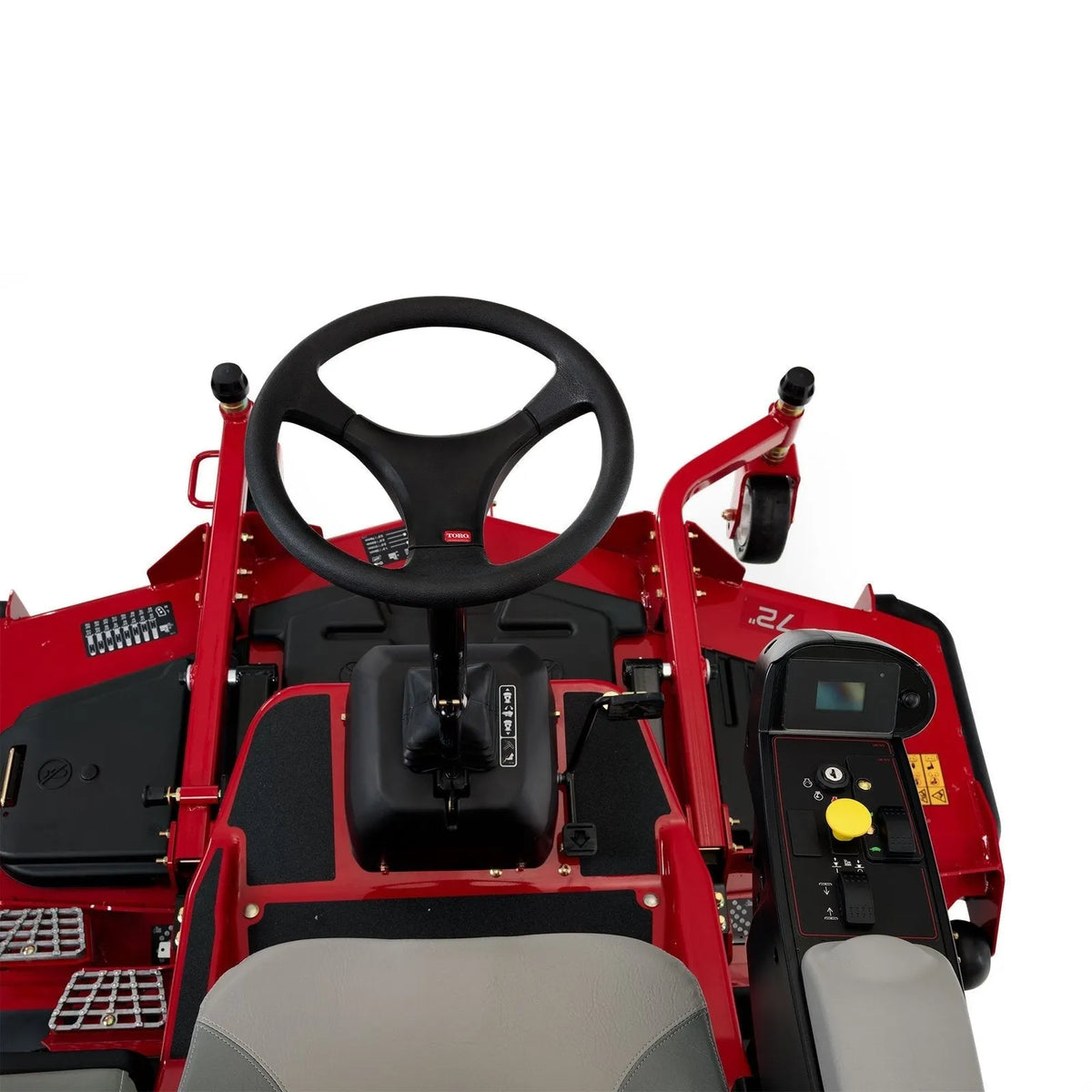

Controls: Foot-operated pedal for forward and reverse. Manually adjustable forward speed limiter. Control arm includes hand-operated throttle, PTO switch, deck/implement lift lower switch, ignition switch, glow plug switch
Cooling System Description: Rear-mount, cross flow radiator with 8.5 fins per 1″ (25 mm), 8 quart (7.6 liter) capacity
Cup Holder: Standard
Cutting Unit Type/Configuration: 72″ (183 cm) Side Discharge Deck
Drivetrain: Diesel
Electrical System: 12V maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 40-amp alternator.
Engine Cooling: Liquid Cooled
Fuel / Power Source: Diesel
Fuel Capacity: 12 U.S. gal. (45.4 L)
Fuel Filter: Fuel filter/water separator
Gauges/Instrumentation: InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates coolant temps, oil pressure, alternator voltage, engine hours.
Ground Clearance: 8.3″ (21 cm)
Ground Speed – Forward: 0 – 15 mph (0 – 24 km/h)
Ground Speed – Reverse: 0 – 6 mph (0 – 9.7 km/h)
Height: 79″ (200.6 cm) with ROPS up
Hydraulic Cylinders: Twin 2.5″ (6.4 cm) bore, 1.25″ (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.
Hydraulic Fluid Type: Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable: No
Interlocks: Seat, PTO, lift/lower, traction, parking brake
Lighting: Optional
Main Frame/Chassis: All welded tubular and formed steel
Max Slope Angle: Refer to operator’s manual
Mowing Rate (Productivity): Up to 7.3 acres/hr (2.9 hectacres/hr) with 60″ deck
Up to 8.7 acres/hr (3.5 hectacres/hr) with 72″ deck
Oil Capacity: 5.2 L (5.5 US qt)
Optional Accessories: LED kits: work light, road light, beacon; recycler kits, slope sensor kit, heat only cab, accs control kit, storage box kit, USB charging kit, aux hydraulic kit, hydraulic hose kit, SMV kit, storage bag kit, power harness kit, ROPS-certified heat-only cab
Overall Width: 53.5″ (135.9 cm)
Parking/Service Brakes: Dynamic braking through hydrostat and foot pedal. Parking Brake: Hand-actuated drum type on front left and right traction wheels.
Power Steering: Yes

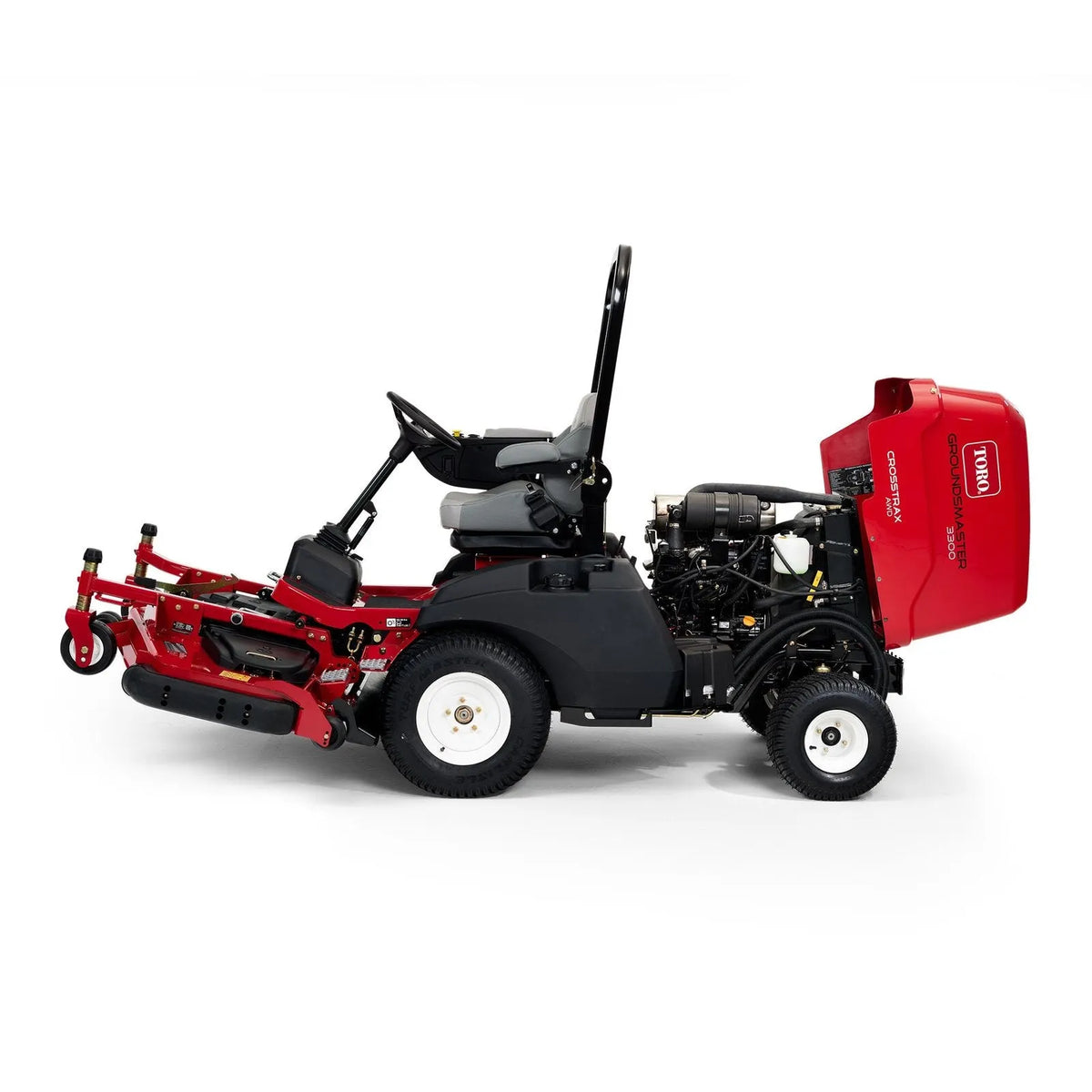

Power Train (Engine Description): Yanmar® 3-cylinder, liquid-cooled diesel. Power:36.8 hp(27.5kW) @ 3000 rpm, Torque peak: 80.7 ft-lbs. (109.4 Nm) @ 1950 rpm. Displacement 1642cc. EPA Tier IV Final / Stage V compliant.
Product Length: 107″ (271.7 cm)
PTO Clutch: Engine mounted 350 ft. lb. (475 Nm) rated electro-magnetic PTO clutch drives 2″ (5 cm) telescoping shaft. Rotary deck connection allows for tip-up service position without disconnection of PTO.
Seat: Deluxe bolstered seat with retractable seat belt
Starting: Key Start
Steering System Description: Hydraulic power steering. Tilt steering wheel released and locked by a foot-actuated lever.
Tires – Front: 24″ x 12″ – 12″, 4-ply
Tires – Rear: 18” x 9.5” – 8”, Turf Tire
Tool Box: Optional
Traction Drive: 4WD
Traction Drive (System): CrossTrax® 4WD. Series/Parallel hydraulic traction system w/ full time, bi-directional 4-wheel drive. Parallel Series hydraulic flow between front and rear wheels.
Weight: 1,886 lbs. (855 kg)
Wheelbase: 52″ (132 cm)
Width of Cut: 72″ (183 cm)
