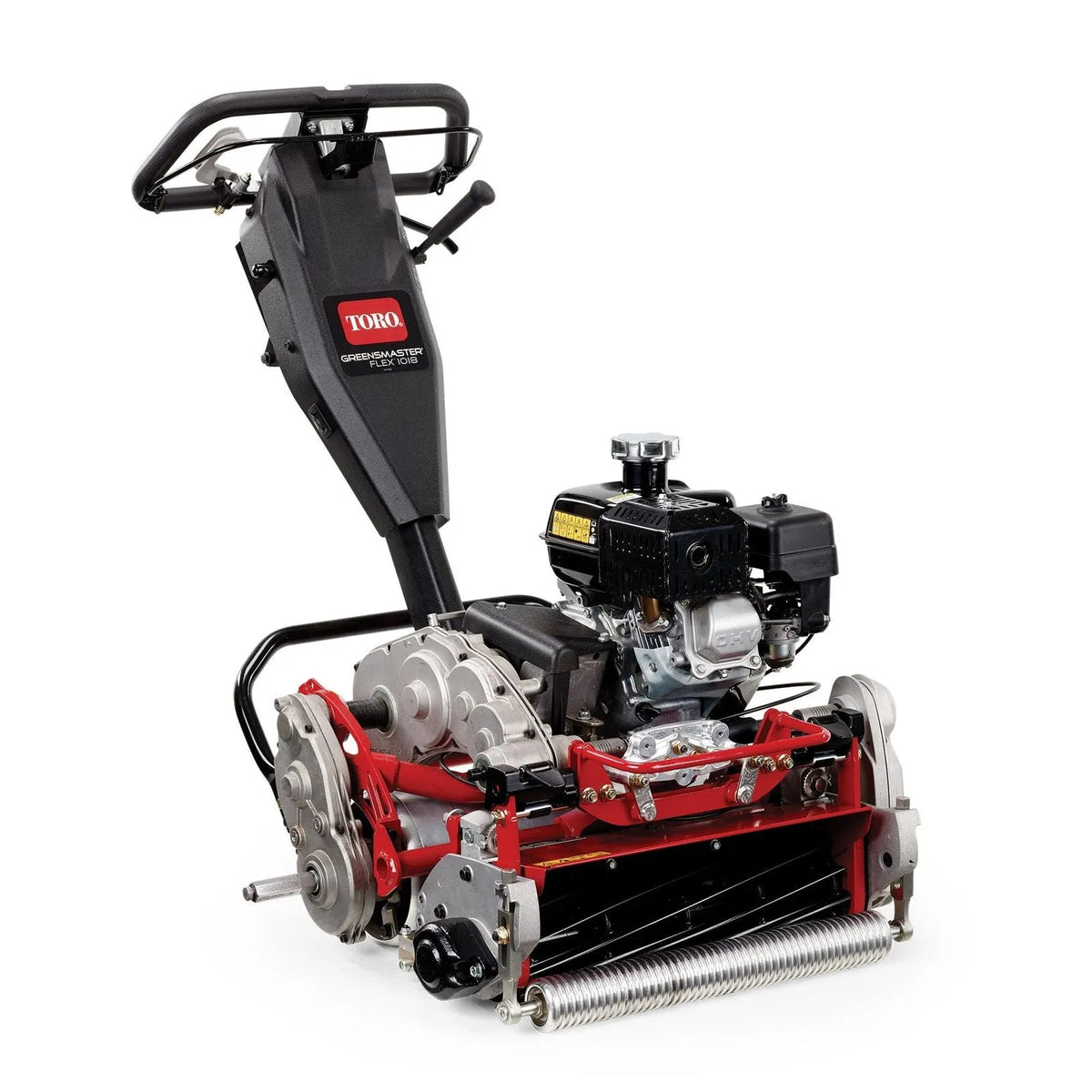

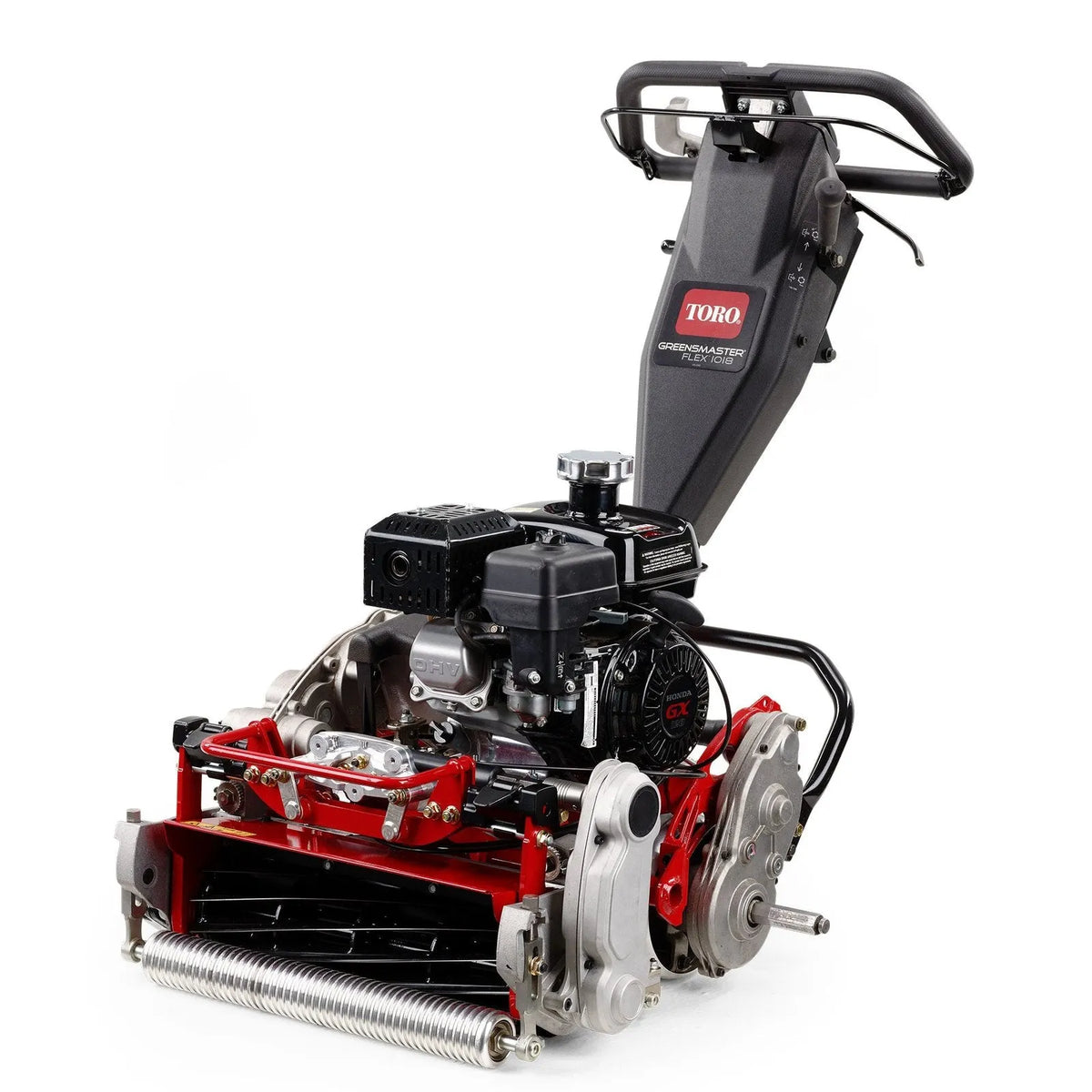

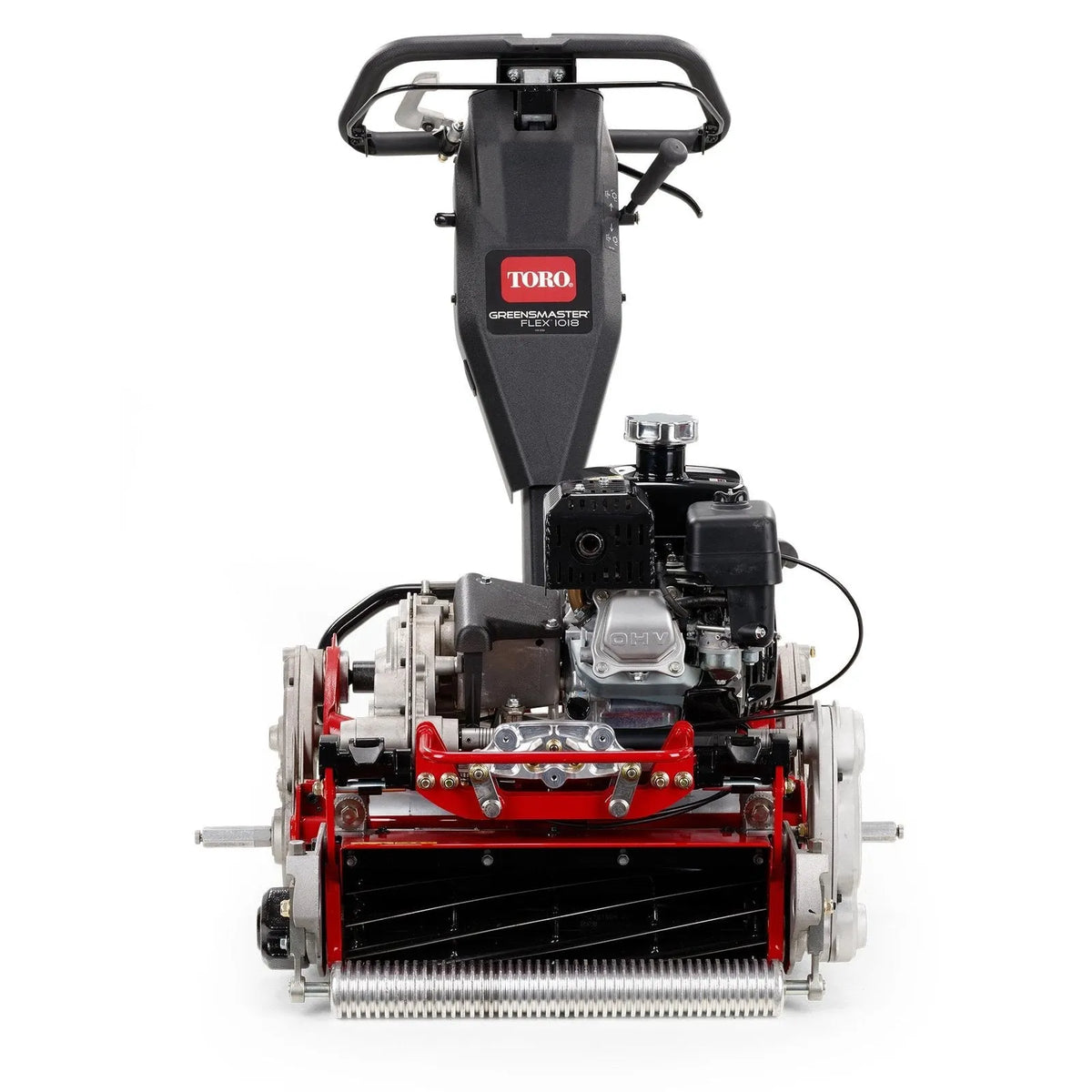

Greensmaster® Flex™ 1018

Toro’s line of flex-head walk-behind greensmowers have been engineered to bring each operator and greensmower into perfect harmony with one another. Multiple innovations – starting with an industry-first telescoping handle – come together to deliver unparalleled cut quality and consistent playability on each and every green. The modular design also makes the Greensmaster Flex Series mowers easier than ever to maintain, saving significant time and money and lowering the total cost of ownership.

Blade Style/Type: Reel

Blade Type (Description): EdgeSeries™ DPA radial reels.

Clip Frequency/Backlapping: Quick-change dual-speed gear drive, combined with positive drive belt – four possible reel speed/clip settings.

Clutch: Externally-mounted two sided dry disc clutch actuated by dual motion bail.

Controls: Engine mounted: recoil starter, choke, fuel shutoff.

Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional).

Cutting Unit Accessories: Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper/Brush Options, Tools and Maintenance Options.

Cutting Unit Suspension: Flex

Cutting Unit Type/Configuration: Tool-free cutting unit removal for service/maintenance or cutting unit exchange for different uses.

Drivetrain: Gas

Fuel / Power Source: Gasoline

Fuel Capacity: 2.1 U.S. qt. (2 L)

Ground Speed – Forward: 0 – 5.3 mph (0 – 8.5 km/h)

Handle: Loop handle with telescoping adjustment of 5″ (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.

Height of Cut Range: For Greens: (Spacer Position One) 0.062″ – 0.250″ (1.5 mm – 6 mm)

For Tees: (Spacer Position Two) 0.125″ – 0.375″ (3 mm – 9 mm)

High Height of Cut Kit: 0.375″ – 1.00″ (9 mm – 25 mm)

Kickstand: Standard

Main Frame/Chassis: Fully modular design allows quick disassembly for service / maintenance of all major components.

Mowing Speed: 2.0 – 3.5 mph (3.2 – 5.6 km/h)

Number of Blades: 14

Optional Accessories: LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, High Height of Cut Kit, Wireless Hour Meter

Parking/Service Brakes: Service/parking – band type.

Power Train (Engine Description): Honda® GX120 – 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil.

Reel Diameter: 5 in. (12.7cm)

Reel/Cylinder Drive: Mechanical/Belt

Starting: Recoil

Tires – Rear: Optional – Two quick-detachable pneumatic tires (3″ x 3.25″ – 6″)

Traction Drive: Gear

Traction Drive (System): Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.

Traction Drum: Tapered traction drum for improved after cut appearance.

Weight: 280 lbs. (127 kg) with 14-blade cutting unit, aluminum Wiehle roller.

Width of Cut: 18″ (45.7 cm)
