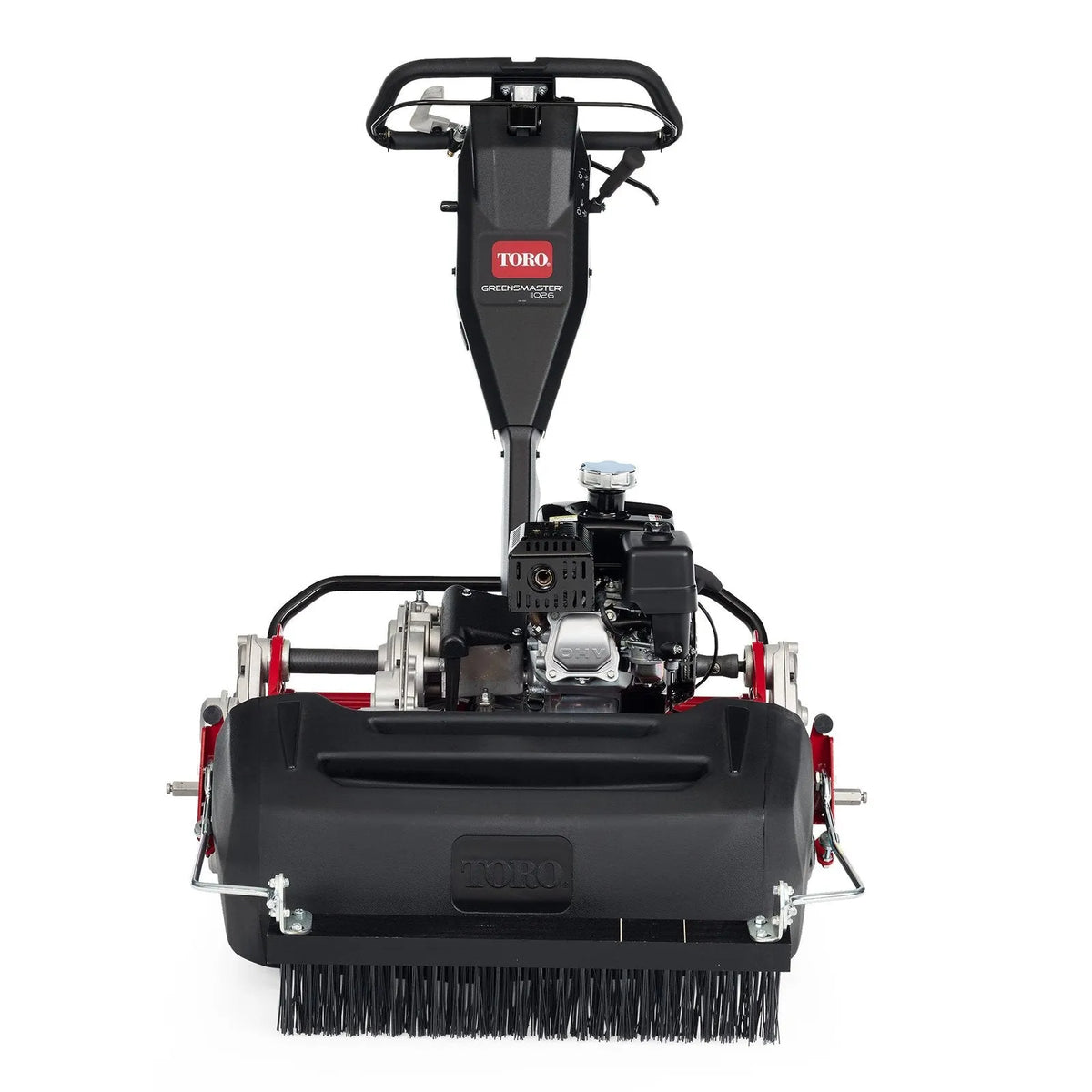

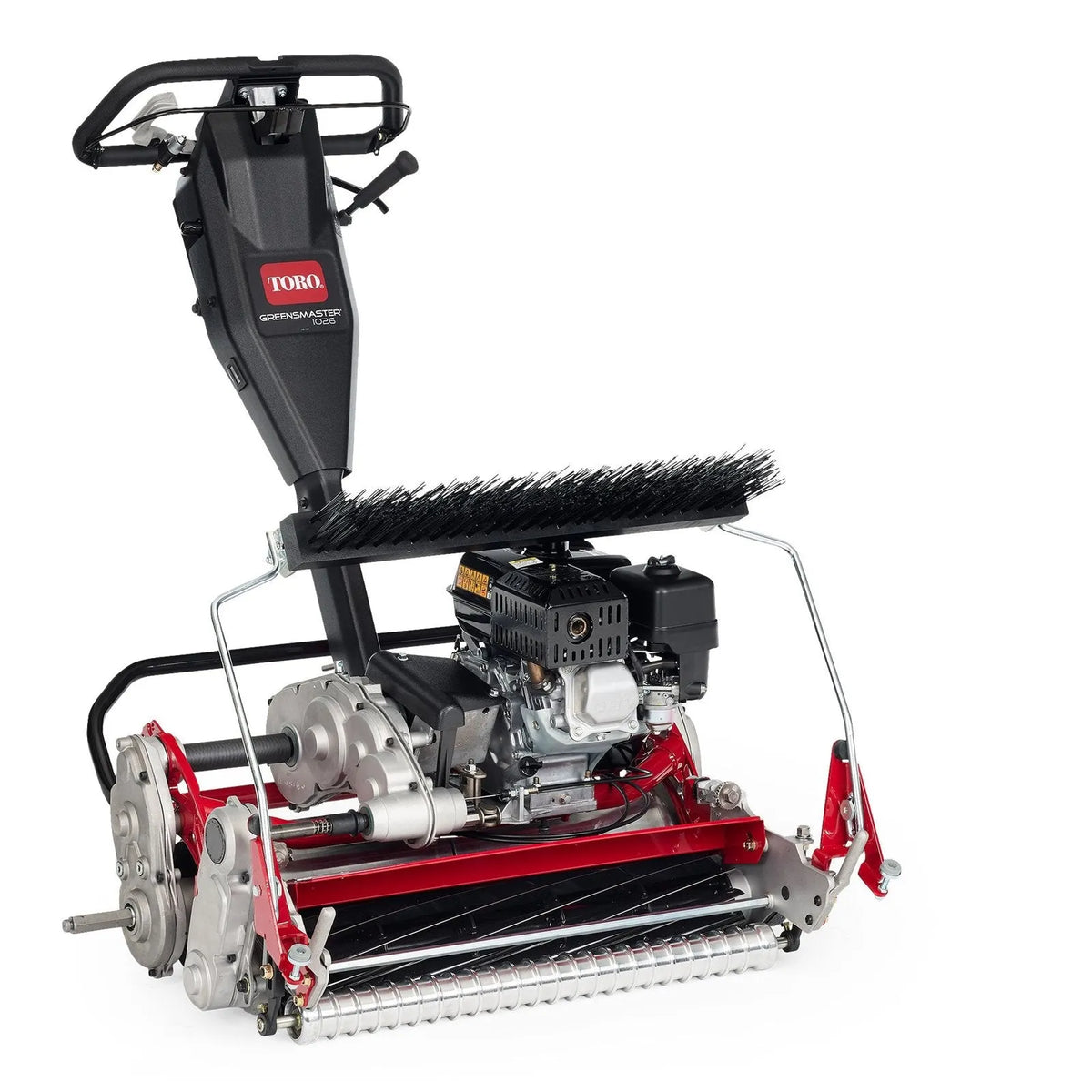

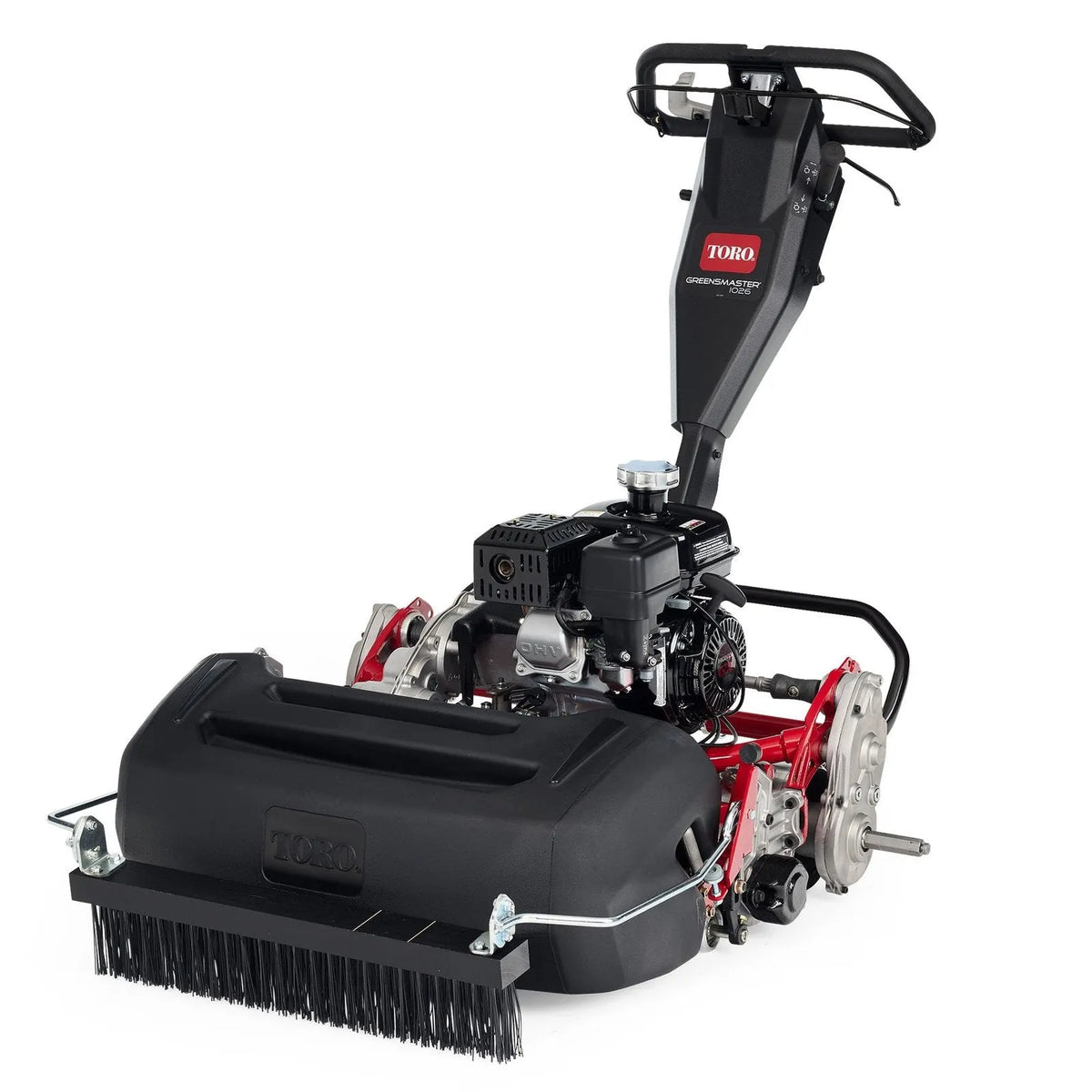

Greensmaster® 1026

Toro’s line of fixed-head walk-behind greensmowers have been engineered to bring each operator and greensmower into perfect harmony with one another. Multiple innovations – starting with an industry-first telescoping handle – come together to deliver unparalleled cut quality and consistent playability on each and every green. The modular design also makes the Greensmaster mowers easier than ever to maintain, saving significant time and money and lowering the total cost of ownership.

Blade Style/Type: Reel

Blade Type (Description): EdgeSeries™ DPA radial reels.

Clip Frequency/Backlapping: Quick-change dual-speed gear drive, combined with positive drive belt – four possible reel speed/clip settings. Backlapping optional.

Clutch: Externally-mounted two sided dry disc clutch actuated by dual motion bail.

Controls: Engine mounted: recoil starter, choke, fuel shutoff.

Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional).

Cutting Unit Accessories: 8, 11-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options.

Cutting Unit Suspension: Fixed

Cutting Unit Type/Configuration: Single detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses.

Drivetrain: Gas

Fuel / Power Source: Gasoline

Fuel Capacity: 2.1 U.S. qt. (2 L)

Ground Speed – Forward: 0 – 5.3 mph (0 – 8.5 km/h)

Handle: Loop handle with telescoping adjustment with 5″ (12.7 cm) total travel, rubber isolated to minimize operator influence during mowing.

Height of Cut Range: For Greens: (Drum Position One) 0.062″ – 0.312″ (1.5 mm – 8.0 mm)

For Tees: (Drum Position Two) 0.25″ – 0.625″ (6.0 mm – 16.0 mm)

High Height of Cut Kit: (Drum Position Two) 1.18″ (30 mm)

Kickstand: Standard

Lighting: Optional

Main Frame/Chassis: Fully modular design allows quick disassembly for service / maintenance of all major components.

Mowing Speed: 2.0 – 3.5 mph (3.2 – 5.6 km/h)

Number of Blades: 11, 8

Optional Accessories: LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Backlap Access Kit, Backlap Kit, Wireless Hour Meter Kit, High Height of Cut Bracket, Wheel Kit

Parking/Service Brakes: Service / parking – band type.

Power Train (Engine Description): Honda® GX120 – 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil.

Reel Diameter: 5 in. (12.7cm)

Reel/Cylinder Drive: Mechanical/Belt

Starting: Recoil

Tires – Rear: Optional – Two quick-detachable pneumatic tires (3″ x 3.25″ – 6″)

Traction Drive: Gear

Traction Drive (System): Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases.

Traction Drum: Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.

Weight: 240 lbs (108.8 kg) with 11-blade cutting unit, aluminum Wiehle roller.

Width of Cut: 26″ (66 cm)
