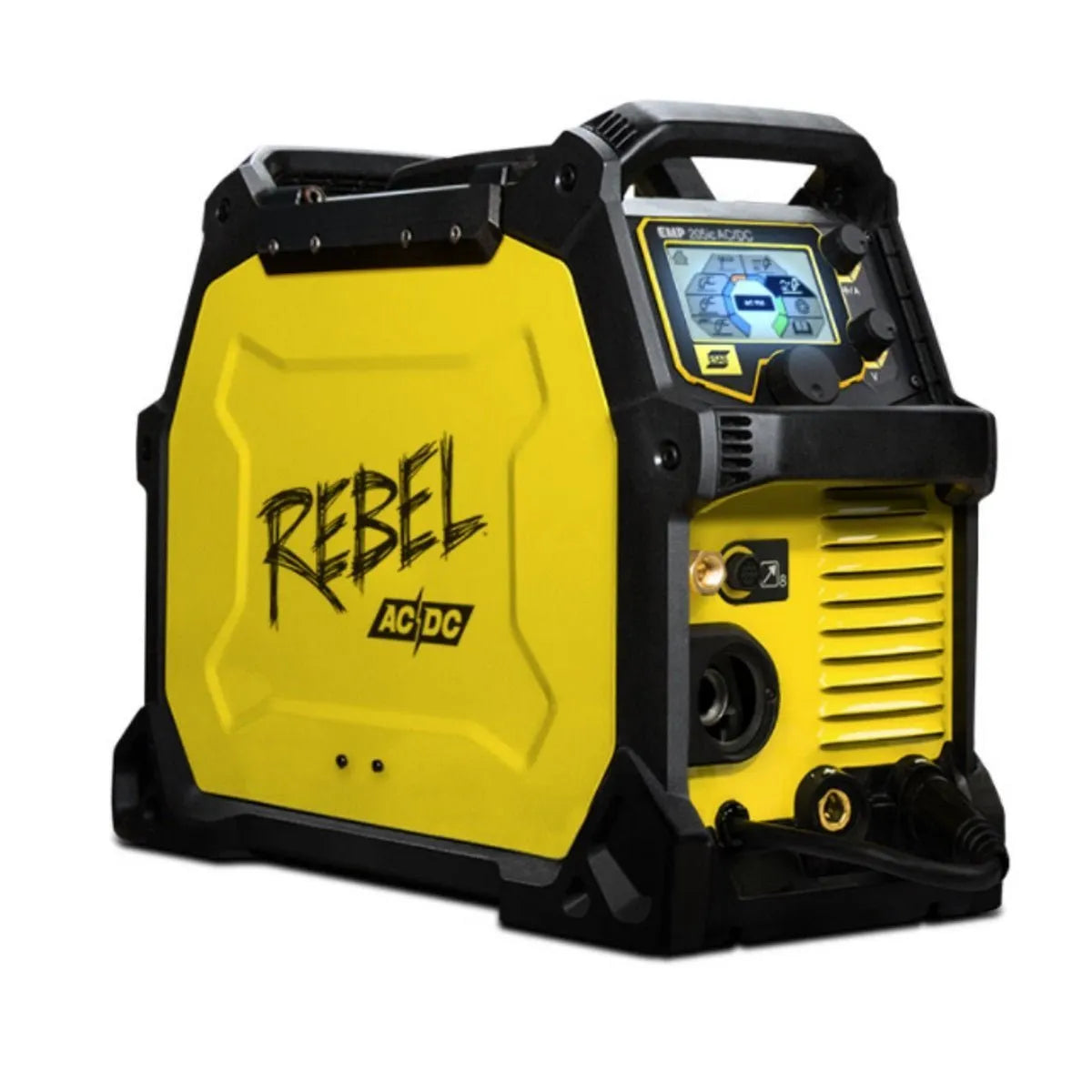

ESAB Rebel EMP 205ic AC/DC Multi-Process Welder (0558102553)

The ESAB Rebel EMP 205ic MIG/Stick/TIG Welder is a high frequency, multi-process welder ready to go-anywhere, weld-anything! All of ESAB’s other multi-process welders only offer DC tig welding whereas this unit offers AC TIG welding for aluminum and titanium. What’s even cooler? ESAB has fit all this technology in the frame of the super-popular Rebel EMP 215 case!

The ESAB Rebel EMP 205ic features sMIG technoloty. sMIG is an exclusive, dynamic arc control that constantly monitors complex arc characteristics adapting to your technique to provide a smooth and superior weld. The Rebel features 2 modes: basic and advanced. Basic mode allows you to set wire diameter and material thickness & you’re ready to pull the trigger. The advanced mode gives you full control over all arc characteristics. The research and technology put into this machine is truly astounding (you can even access your correct consumable part numbers and user manual on the 4.3″ LCD screen). You no longer have to be a career welder or a rocket scientist to set your machine up correctly.

Did we mention that this machine can TIG weld aluminum?

Features:
• AC/DC TIG Mode

• sMIG technology
• 4.3-in Color LCD Display
• 120V/230V Dual Input Voltage
• Weld parameter storage
• Hot start (Stick mode only)
• Arc Force (Stick mode only)
• Lift arc (TIG mode only)
• Trigger lock (2T, 4T)
• Voltage trim adjustment (MIG mode only)
• Inductance adjustment (MIG mode only)
• Burn back adjustment (MIG mode only)
• Pre-flow/post-flow adjustment (MIG mode only)

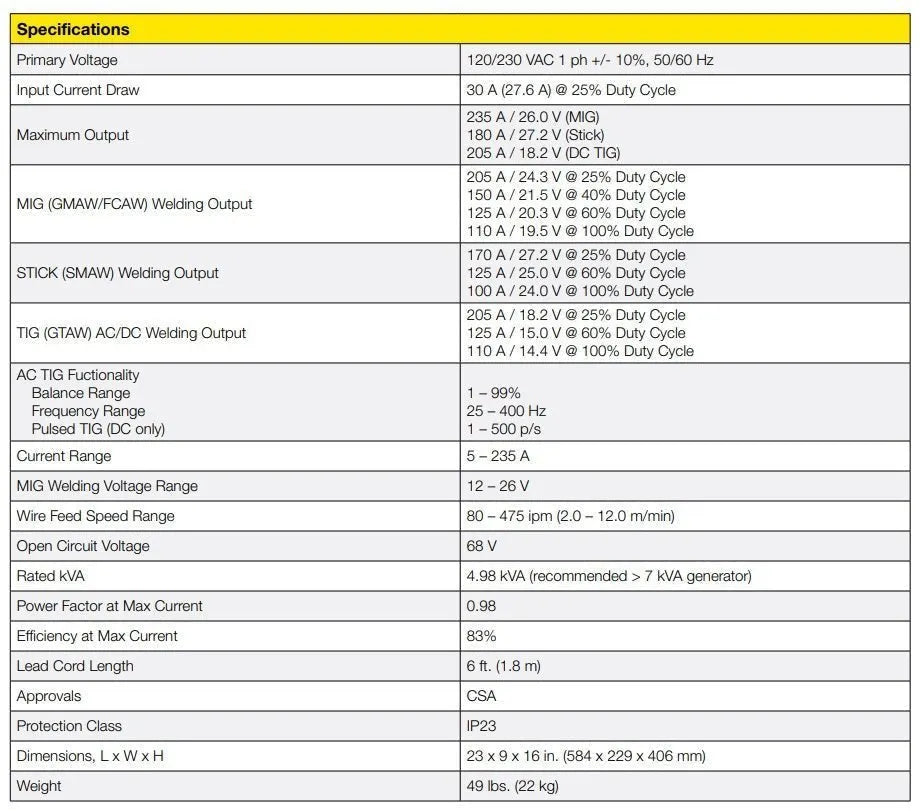

Quick Specs
• Input Power: 120V/230V
• Current Range: 5-150A (120V), 5-235A (230V)
• Wire Diameter Capacity: .023″-.045″
• Weight: 49lbs
• Dimensions: 16″ H x 9″ W x 23″ D
• Max Plate Thickness: 3/8″
• Generator Requirement: 3.7 kVA (110V) | 7.5 kVA (230V)
• Warranty: 3 years on power source, 1 year on torch

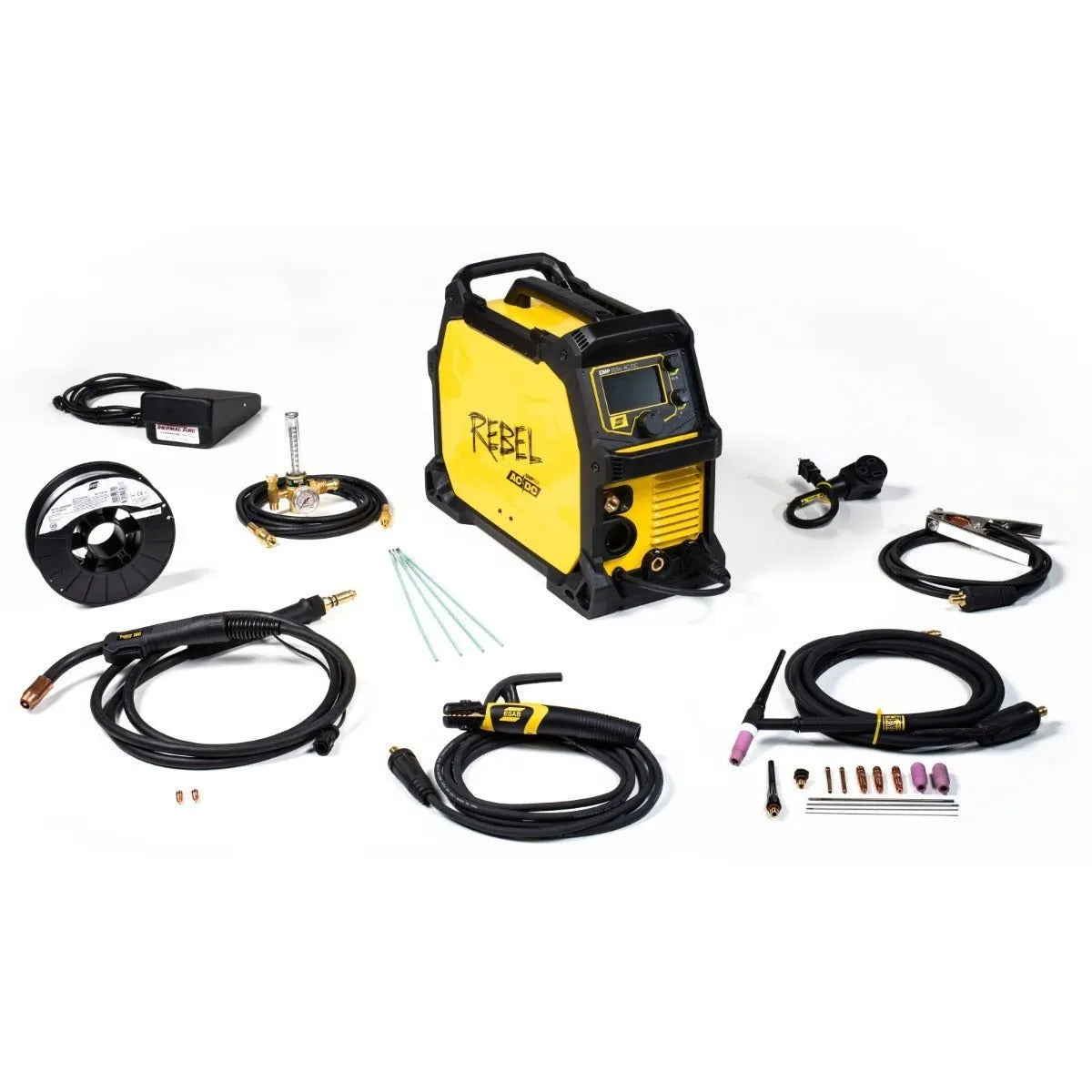

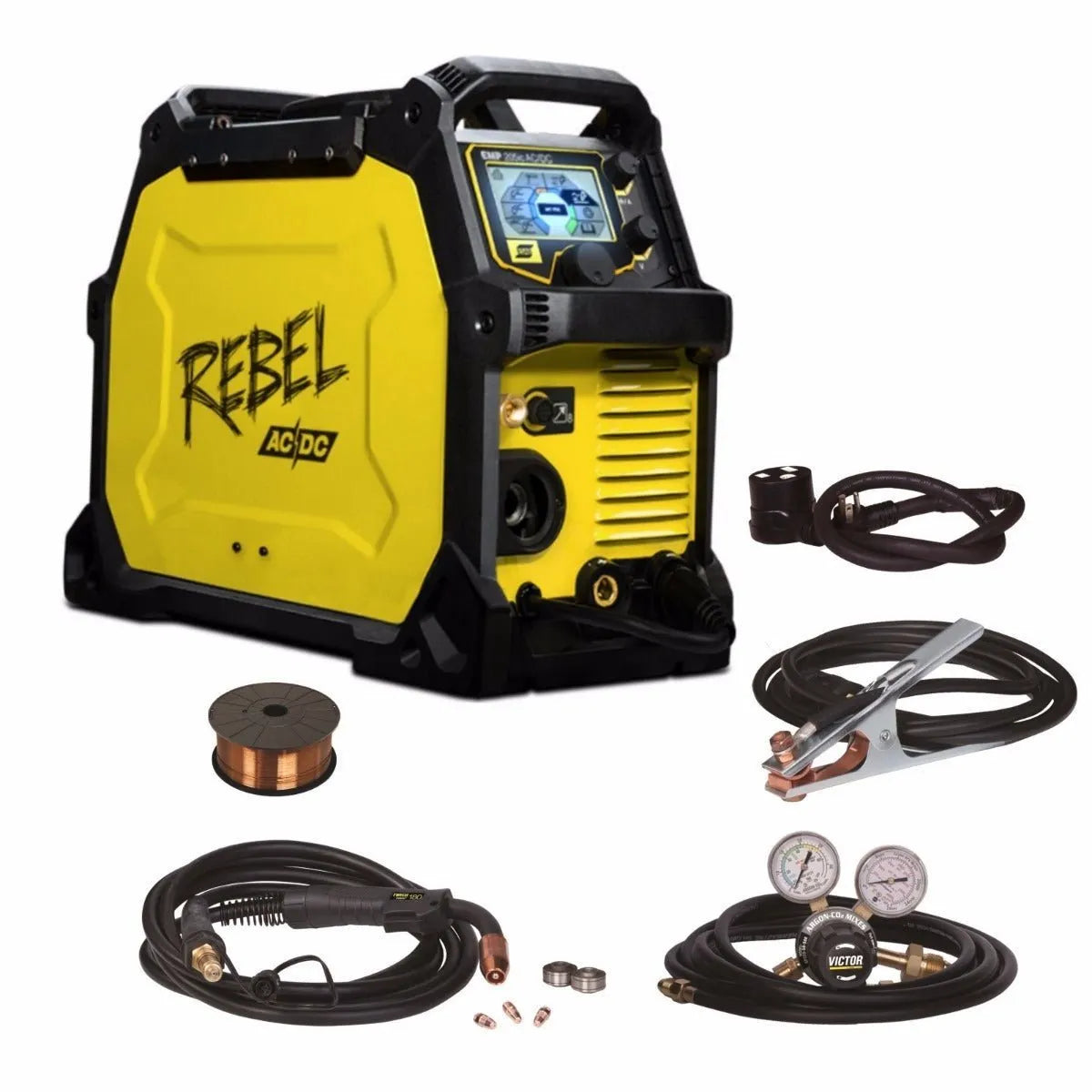

Comes Complete With:
• Power Source
• 10-foot Tweco Fusion 180 MIG gun
• 13-foot Tweco 200A electrode holder
• Tweco ground clamp with leads
• Spare MIG gun parts kit, including contact tips & drive rolls
• Four general purpose 6013 stick electrodes
• ESAB 70S-6 .030 8-inch 4-lb sample spool
• Wired Foot Control
• Tweco 12.5Ft 17 Series TIG torch & accessories (3 Collets and Collet Bodies (1/16, 3,32, 1/8)
• 1 Short Backcap | 1 Long Backcap | 3 Tungsten (1/16, 3/32, 1/8) | 3 Cups (#5, #6, #8)
• Victor Argon/CO2 Flowmeter Regulator with 10-foot gas hose
• 230V Plug Installed (120V Adapter Plug Included)
