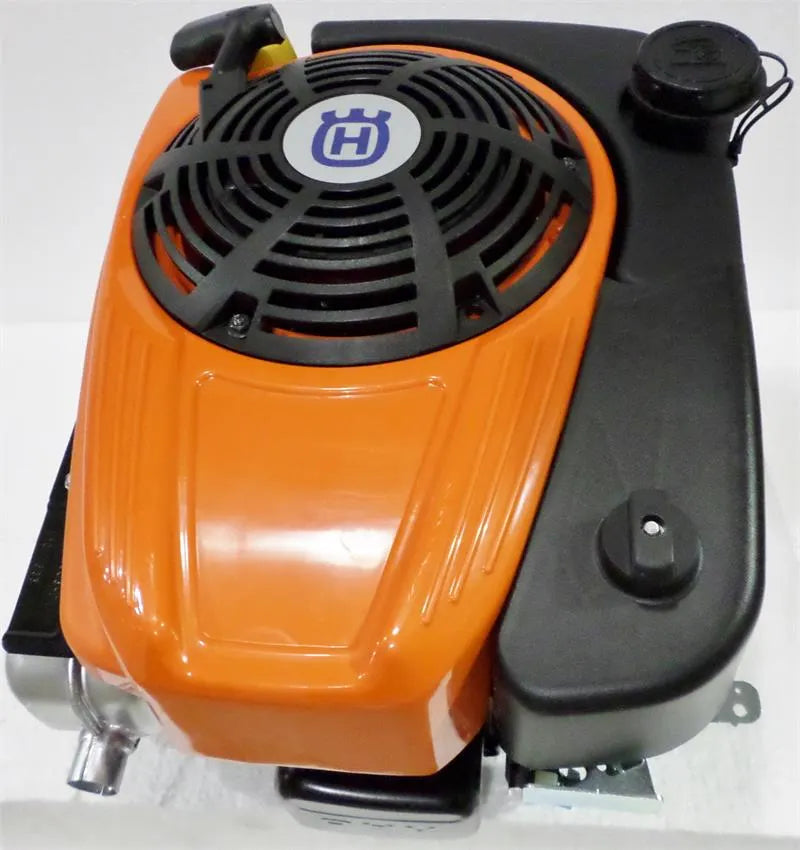

Briggs and Stratton Vertical Engine 7.75TP 7/8″ x 2-7/16″ HF #111P02-0003
Professional Series7.75 Gross Torque*The Professional Series engines were designed to deliver a best-in-class experience combining power, performance, features, and size. These engines offer consumers and professionals commercial-grade features including easier starting, smoother and quieter operation, increased durability, and longer life. ReadyStart® is standard on all Professional Series engines. |
7/8″ x 2-7/16″ shaft, tapped 3/8″-24 with 3/16″ keyway.
|
Feature
|
Benefit
|
|---|---|
|
Large 175cc Displacement – 7.75 ft.-lbs. Gross Torque*
|
Delivers maximum power and torque for heavy-duty applications
|
|
ReadyStart® Starting System
|
No priming or choking required, just pull the cord for hassle-free starting
|
|
Our Starting Promise
|
Starts in 2 pulls or Briggs will fix it for free
|
|
Overhead Valve Design
|
Runs cooler and cleaner delivering more power, longer engine life, and improved fuel economy
|
|
Large Diameter Rewind Starter
|
Requires less pull force during starting
|
|
One-Start Carburetor
|
Float-feed carburetor for consistent one-pull starts
|
|
Tube-Outlet Muffler
|
Reduces noise levels and improves tonal quality
|
|
Commercial-Grade Air Management System
|
Dual-seal design for less debris intake and longer element and engine life
|
Engine Specifications
|
Engine Fuel
|
Gasoline
|
|
Configuration
|
Vertical
|
|
Cylinders
|
One
|
|
SKU
|
111P02-0003-F1
|
|
Top No Load Speed
|
SET ENG NO-LOAD SPEED TO 3100 +/-100 RPM
|
|
Oil Capacity
|
20 fl. oz.
|
|
Air Cleaner
|
AIR CLEANER, DUAL ELEMENT OVAL
|
|
Air Cleaner Cover
|
AIR CLNR COVER, 290 SATIN BLACK
|
|
Bearings
|
BEARINGS, PLAIN PTO
|
|
Blower Housing
|
REWIND COVER, LS, 290 SATIN BLACK
|
|
Bore Type
|
Koolbore
|
|
Piston Bore Size
|
2.6
|
|
Piston Stroke
|
2
|
|
Casing Clamps
|
CASING CLAMP & SCREW, WITHOUT
|
|
Controls Groups
|
CONTROL GROUP 73, MODEL 11/12
|
|
Cylinder Head
|
CYLINDER, ALUMINUM
|
|
Deflectors
|
DEFLECTORS, WITHOUT
|
|
Dipsticks
|
DIPSTICK, OPPOSITE CARB SIDE
|
|
Oil Drain
|
OIL FILL, OPPOSITE CARB SIDE
|
|
Misc
|
FUEL HOSE, LOW PERM VERSION
|
|
Flywheel
|
FLYWHEEL, HVY, CAST IRON, REW ONLY
|
|
Governor
|
MECHANICAL GOVERNOR
|
|
Exhaust
|
MUFFLER, PERFORMANCE W/TUBE OUTLET INST (SMALL)
|
|
Spark Plug
|
SPARK PLUG, RESISTOR
|
|
Starting System
|
STARTER, REWIND POSITION – 5:30 O’CLOCK
|
