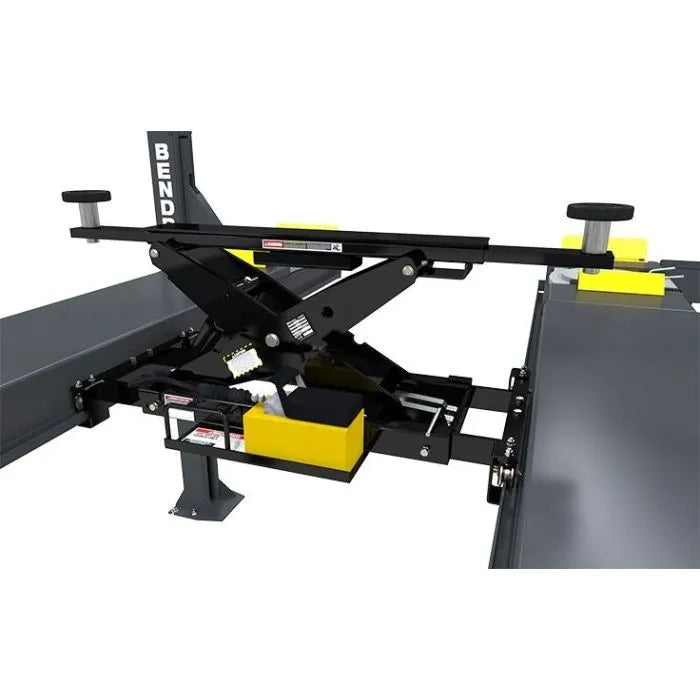

BendPak RJ45W 4-Post Rolling Bridge Jack
Lift 4,500 lbs. for Full Wheel Service Capability
The RJ45W rolling bridge jack is the DIY’ers dream product, and it’s ideal for any shop with the HD-9, arguably our most popular and versatile car lift. The HD-9 is the lift that many garages prefer because its optional caster kit allows operators to move it anywhere in their shop. Its compact size and reputation for safety mean this is one of the most popular car lifts ever made. Anyone interested in a four-post lift for wheel service should consider the HD-9 complete with a pair of RJ45W rolling bridge jacks.
What is the difference between the RJ45LP and RJ45W?
The RJ45LP and RJ45W rolling bridge jacks are essentially the same except for two specifications: First, the RJ45LP minimum drive-over height is 4.25″ and the RJ45W minimum drive-over height is 4.5″. Second, the RJ45LP maximum arm reach is 61″ wide and the RJ45W maximum arm reach is 57″ wide. Take a look at the RJ45LP Bridge Jack.

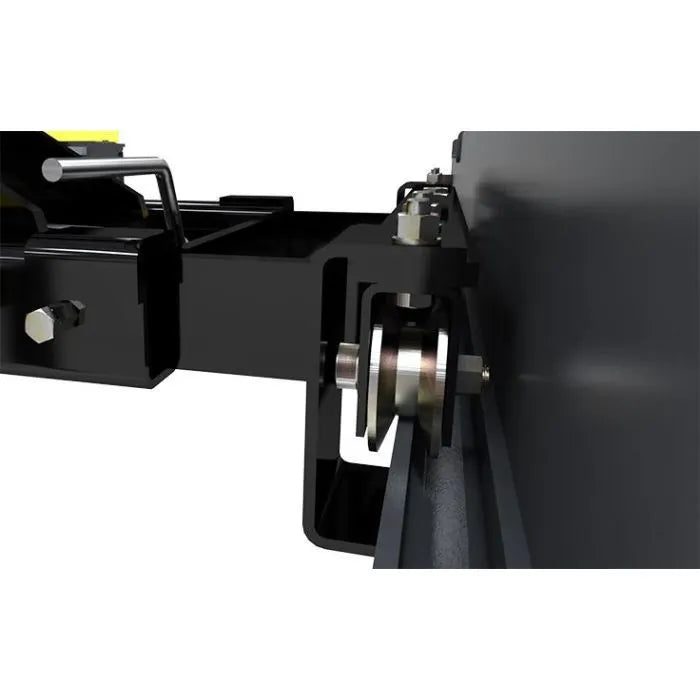

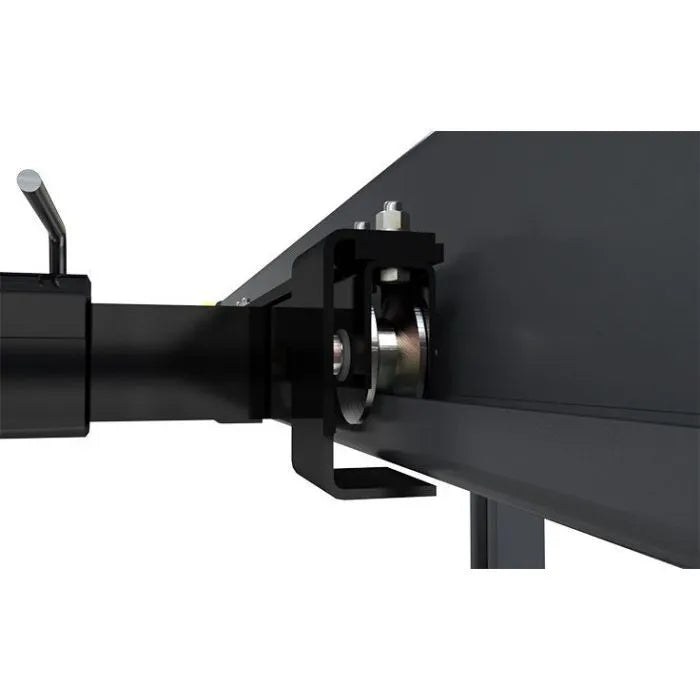

Easy-Roll Wheels Come Standard
The RJ45W rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models 7,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.
Rubber contact pads
BendPak protects your vehicles by providing a non-marring rubber contact pad on the popular RJ45W rolling bridge jack. The durable design will hold up for many years of heavy use. We highly recommended purchasing the optional frame cradle set for use on trucks and SUVs.
Stackable adapters
Once your rubber contact pads are positioned under the manufacturer-recommended lift points, you may find that high-clearance vehicles are hard to reach. The stackable adapter set comes in handy to bridge that gap and make lifting easier.
High-pressure hydraulic power unit
Attached to the rolling bridge jack is a hydraulic power unit that also features an airline with 125 psi and 10 – 20 CFM. This independent power unit is ergonomically controlled with a foot pedal attached directly to the jack.

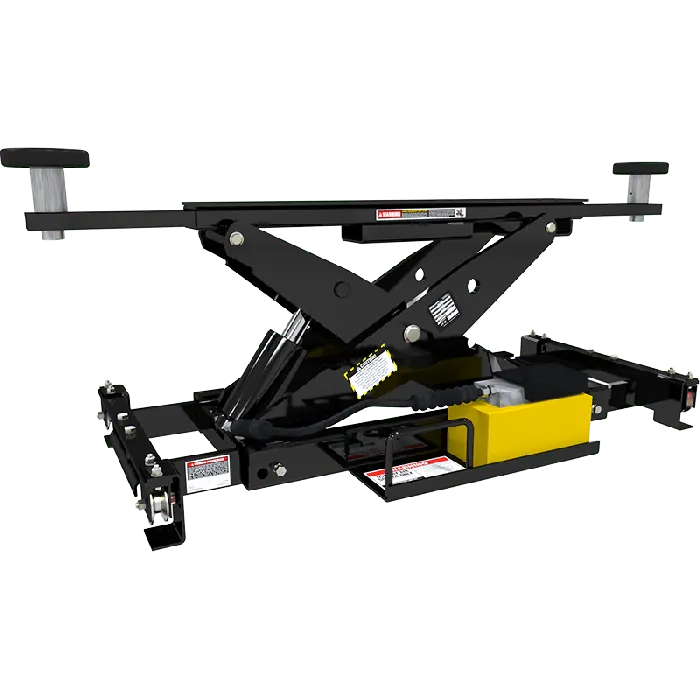

RJ45W Rolling Bridge Jack
4,500-lb. Lifting Capacity | Adjustable Height | Heavy-Duty Performance
Three Locking Heights for Maximum Flexibility
The RJ45W features three locking positions, giving you full control to set the optimal working height for wheel and brake service. Whether you’re performing quick tire changes or more in-depth undercarriage work, this rolling bridge jack is designed to keep your workflow smooth and efficient.
Need more height? Raise your four-post lift to its maximum, stack the included adapters, and lift the RJ45W to its full extension. The result: unparalleled access to the vehicle’s underside.
Key Features:
- 4,500-lb. lifting capacity
- Three locking positions for versatile lifting height
- Easy-Roll Wheels for smooth positioning
- Rubber contact pads to protect vehicle surfaces
- Stackable height adapters for added lift range
- High-pressure hydraulic power unit (air/hydraulic pump)
- Optional air-line kit for quick setup and mobility
Specifications:
| Lifting Capacity | 4,500 lbs. (2,041 kg) |
|---|---|
| Compatible Lift Models | HD-7 Series, HD-9 Series, GP-9 Series |
| Minimum Drive-Over Height* | Pad Only: 4.5″ (114 mm) Pad + 2.75″ Adapter: 7.25″ (184 mm) Pad + 5.5″ Adapter: 10″ (254 mm) |
| Maximum Lifting Height* | Pad Only: 15.5″ (394 mm) Pad + 2.75″ Adapter: 18.25″ (464 mm) Pad + 5.5″ Adapter: 21″ (533 mm) |
| Support Base Width | 35.5″ (902 mm) – 46.5″ (1,181 mm) |
| Arm Reach | Max: 57″ (1,448 mm) Min: 42″ (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump Type | Air/Hydraulic |
| Air Pressure Requirement | 125 PSI (10–25 CFM) |
| Max. Hydraulic Pressure | 2,490 PSI |
| Power Requirement | None (air-powered) |
| Shipping Weight | 378 lbs. (171 kg) |
| Shipping Dimensions | 42″ x 24″ x 12″ (1,066 mm x 609 mm x 304 mm) |
