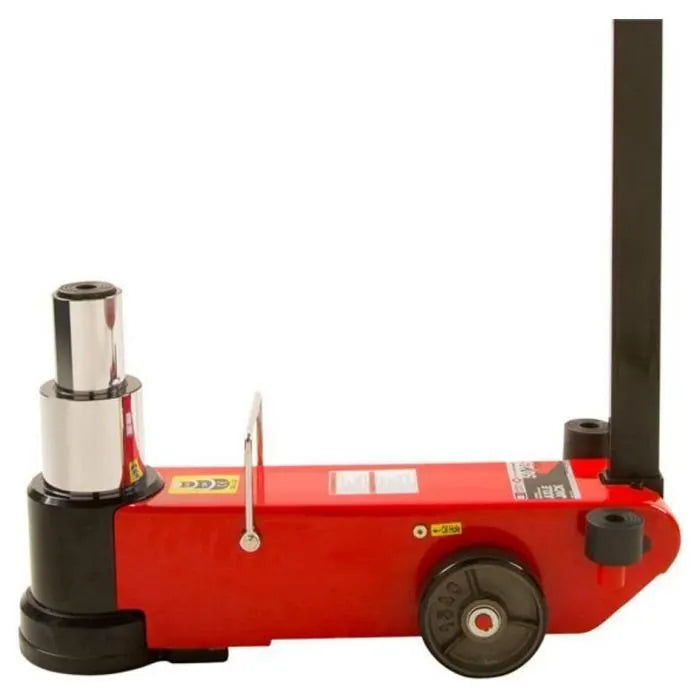

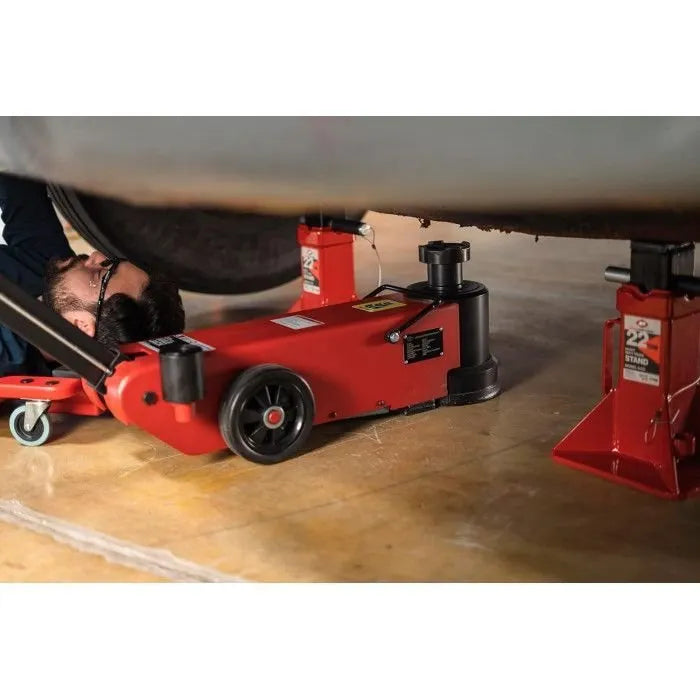

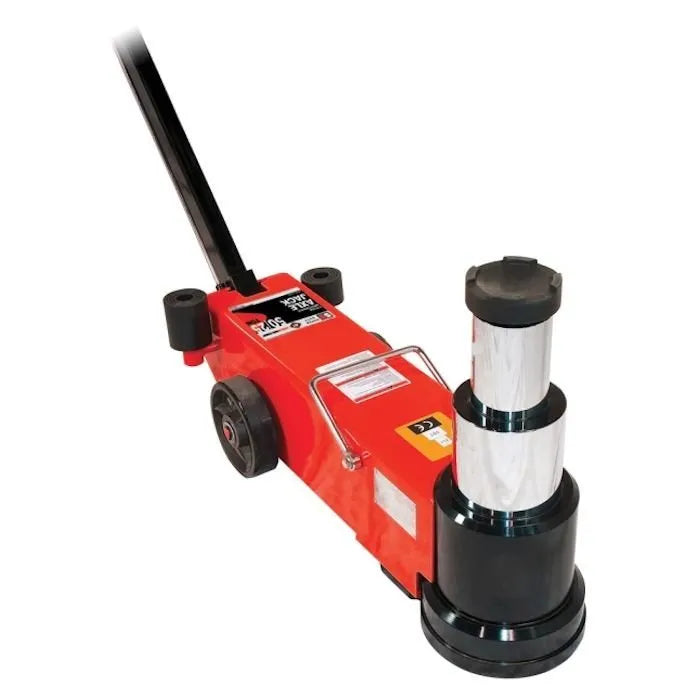

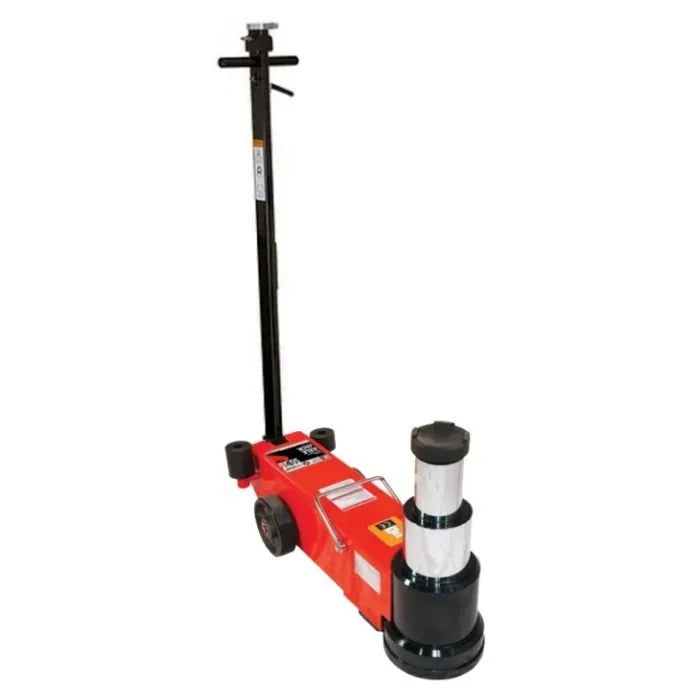

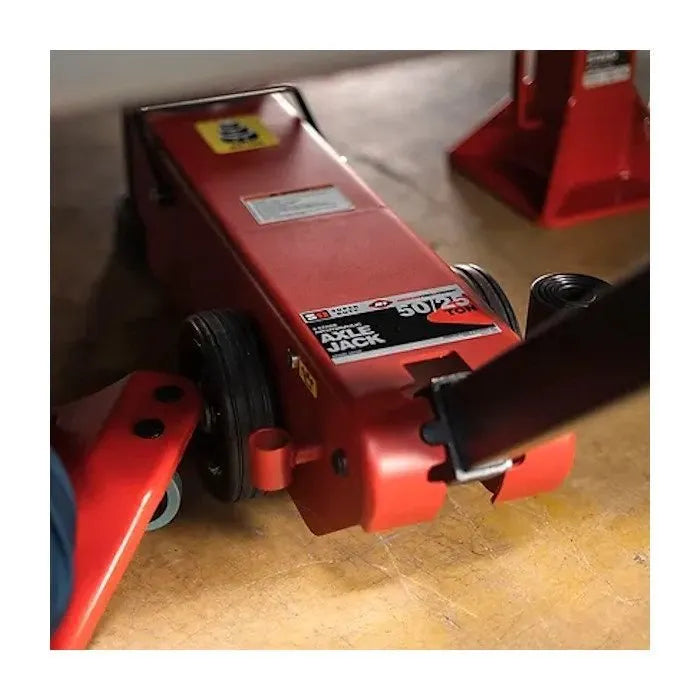

AFF 50-25-Ton 2-Stage Air Hydraulic Axle Jack
American Forge & Foundry’s 50-25-Ton 2-Stage Air Hydraulic Axle Jack is a super-duty axle jack built tough for the rigors of the heavy-duty trucking, agricultural, and fleet business. Features include industrial technology piston head seal design, extra long handle with three locking positions, integral descent metering, single piece base construction, double-polished chrome pistons, air-assisted lowering speed, and built-in overload safety valve. Includes saddle adapter and two extensions 1.75″ and 3″.
Features
- Super Heavy-Duty, 2-Stage 50 / 25 Ton Built Tough For The Rigors Of The Heavy-Duty Trucking, Agricultural, And Fleet Business
- The Piston Head Seal Design Is Borrowed From Industrial Technology Providing A Superior Low And High-Pressure Seal, Giving This Jack A Much Better Hold Under Severe Load Conditions
- The Extra Long 54″ (138Cm) Handle Can Be Locked In 3 Positions For Easy Positioning Of This Jack In Hard To Reach Places
- Integral Descent Metering Valve Maintains A Controlled And Safe Lowering Of The Load
- Single Piece Base Construction Provides Superior Strength For Increased Load Stability
- Double Polished Chromed Pistons Allow For Much Tighter Tolerances Which Reduce Oil Bypassing And Reduce Ram Scoring
- Air-Assisted Lowering Speeds Up Ram Retraction
- Built Overload Safety Valve Prevents Damage To Unit Due To Excessive Load
- Includes 2 Extensions 3″ (75Mm) And 1.75″ (45Mm) And Saddle Adapter
- Units Are Tested To -13°F (-25°C) And +113°F (+45°C) As Well As Center Loading To Ensure A Long Life Under Even The Harshest Conditions
Specifications
- 50-Ton (1st Stage) Low Height: 8.46″ (215mm)
- 50-Ton (1st Stage) High Height: 13.07″ (332mm)
- 50-Ton (1st Stage) Ram Lift: 4.61″ (117mm)
- 25-Ton (2nd Stage) Low Height: 8.46″ (215mm)
- 25-Ton (2nd Stage) High Height: 17.56″ (446mm)
- 25-Ton (2nd Stage) Ram Lift: 9.09″ (231mm)
- Working Air Pressure: 116 to 174PSI (0.8 to 1.2 Mpa)
- Net Weight: 161 lbs. (73kg)
- Shipping Weight: 165 lbs. (75kg)
- Warranty: (1) Year Limited
